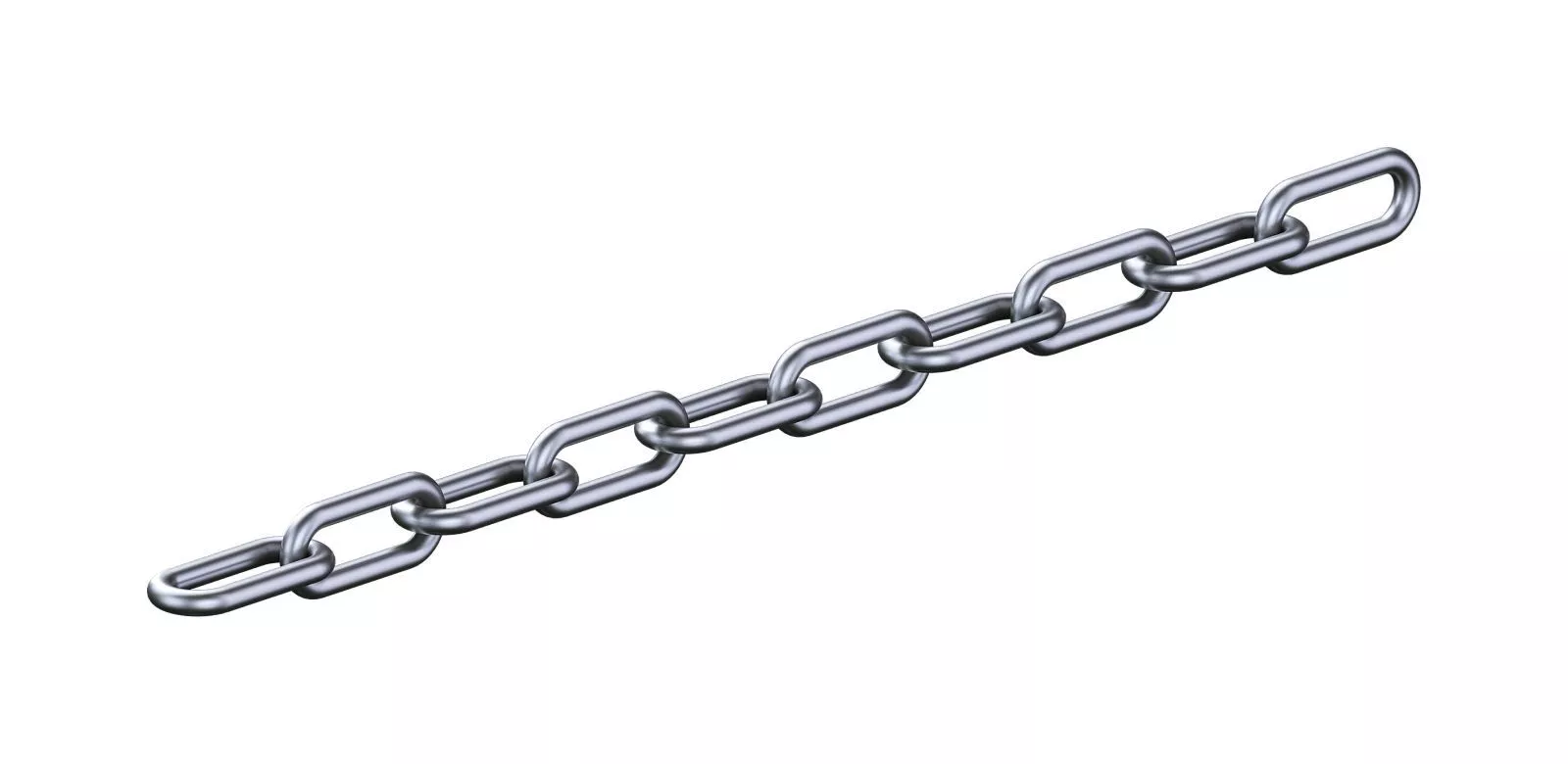

Trawl Chain 19x75 Grade 8

The chain is used for manufacturing of trawls and other aquatic harvesting equipment.

  • Diameter (d), mm: 19
  • Pitch (P), mm: 75
  • Inside width (b), mm, min: 25
  • Proof load, kN: 245
  • Break load, kN: 380
  • Grade: 8
  • Commercial weight, kg/m: 7,21
  • Standard: The chain is produced following the manufacturer’s documentation developed with account of requirements to loads and operation conditions specified at order.

Material
Alloy steel with subsequent heat treatment.

Coating
NSW – non-painted, natural black
PPS – ISO 12944-5 paint coating

Standard
The chain is produced following the manufacturer’s documentation developed with account of requirements to loads and operation conditions specified at order.

Chain length to be specified at order. Standard chain lengths for ordering are 25 m, 50 m and 100 m. Other lengths are subject to discussion case by case.
