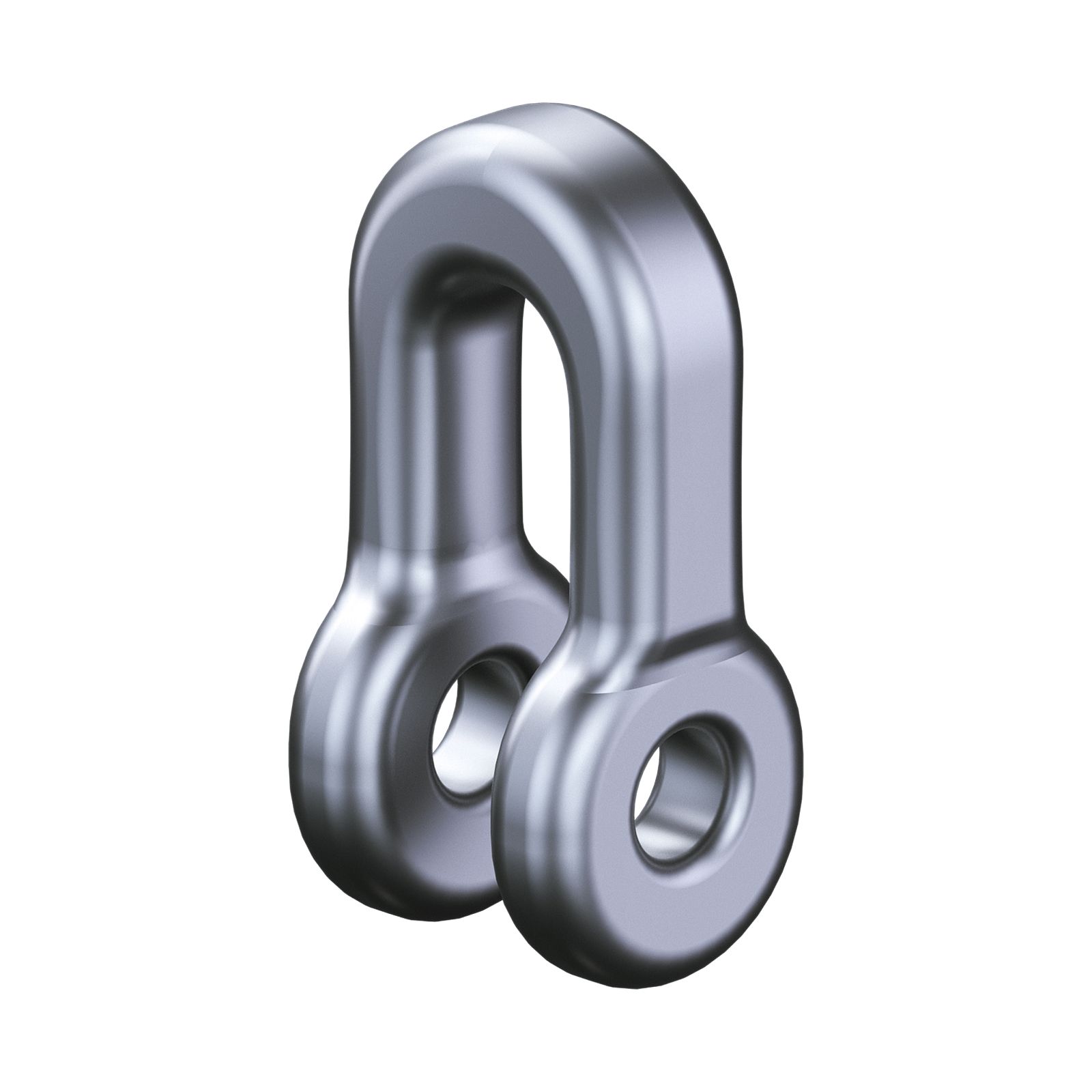

The shackles are used to secure oval and round link chains to the cement kiln shell.
Available in the following versions:
HR1 — ordinary shackle to be used in the gas stream temperature range up to +500 °С;
HR2 — perfect for the gas stream temperature range from +500 to +700 °С;
HR3 — perfect for the gas stream temperature range from +700 to +950 °С;
HR4 — perfect for the gas stream temperature range from +950 to +1150 °С.
Material
Carbon steel, alloy steel, heat-resistant steel. Steel grade is selected basing on the operating temperature range.
Coating
NSW — non-painted, natural black.
Standard
The shackle is produced following the manufacturer’s documentation developed with account of operation conditions specified at order.
